VEX IQ
VEX IQ 教育套裝（第二代）
HK$4,100
型號: 228-8899

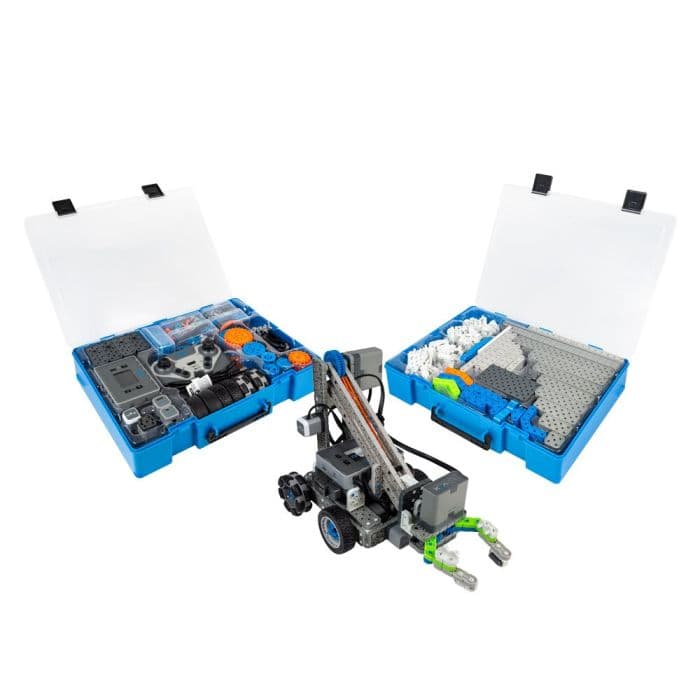

VEX IQ 教育套裝（第二代）
HK$4,100
商品介紹
VEX IQ 教育套裝是為課堂教學配置的第二代套裝，重點不是比賽，而是一班學生能不能在固定的課時內完成一個可運作的機器人並理解原理。零件以插扣方式組裝，免工具、免螺絲，收拾與盤點也比金屬套裝快得多。
配合 VEX 官方的 STEM Labs 課程，老師可以直接取用現成的教案、學習目標與評量，不必自己從零設計整個學年。編程同樣使用 VEXcode IQ，圖形化積木與 Python 共用一個專案，方便同一班內做分層教學。
如果之後決定成立校隊參加 VIQRC，這套器材可以繼續使用，再按當季題目補購場地與零件即可。
由 STEAM.HK 於香港供應，提供學校報價單、交期確認與零件補充；課程規劃、師資培訓與比賽支援由姊妹品牌 CAMEL STEAM 負責。硬件查詢請致電 +852 2612 5666，課程查詢請致電 +852 2612 5555。
套件內容
| 數量 | 零件 | SKU |
|---|---|---|
| (28) | 0.25x Pitch Spacer | 228-2500-114 |
| (11) | 0.25x Pitch Standoff | 228-2500-063 |
| (13) | 0.5x Pitch Standoff | 228-2500-064 |
| (11) | 0.5x Pitch Standoff Extender | 228-2500-109 |
| (4) | 0x1 Sheet Pin | 228-2500-099 |
| (22) | 0x2 Connector Pin | 228-2500-086 |
| (4) | 0x2 Idler Pin | 228-2500-084 |
| (21) | 0x3 Connector Pin | 228-2500-087 |
| (10) | 12 Tooth Gear | 228-2500-213 |
| (4) | 16 Tooth Sprocket | 228-2500-233 |
| (5) | 1x Pitch Plastic Motor Snap Shaft | 228-2500-328 |
| (13) | 1x Pitch Standoff | 228-2500-065 |
| (2) | 1x Wide Spool | 228-2500-420 |
| (9) | 1x Wide, 1x1 Corner Connector | 228-2500-129 |
| (13) | 1x Wide, 1x1 Offset Corner Connector | 228-2500-130 |
| (10) | 1x1 Beam | 228-2500-154 |
| (221) | 1x1 Connector Pin | 228-2500-060 |
| (6) | 1x10 Beam | 228-2500-009 |
| (4) | 1x12 Beam | 228-2500-011 |
| (4) | 1x16 Beam | 228-2500-014 |
| (5) | 1x2 Beam | 228-2500-001 |
| (53) | 1x2 Connector Pin | 228-2500-061 |
| (4) | 1x3 Center Lock Beam | 228-2500-1141 |
| (7) | 1x4 Beam | 228-2500-003 |
| (2) | 1x4 Crank Arm with 23 Tooth Gear | 228-2500-246 |
| (5) | 1x4 Low Profile End Lock Beam | 228-2500-1548 |
| (2) | 1x5 Beam | 228-2500-004 |
| (6) | 1x6 Beam | 228-2500-005 |
| (8) | 1x8 Beam | 228-2500-007 |
| (4) | 200 mm Smart Cable | 228-2780-001 |
| (2) | 200mm Travel Omni-Directional Wheel | 228-2500-2536 |
| (4) | 24 Tooth Gear | 228-2500-227 |
| (2) | 24 Tooth Sprocket | 228-2500-235 |
| (2) | 24x Pitch Rope | 228-2500-438 |
| (1) | 2m USB Cable (A-Micro) | 228-6901-001 |
| (3) | 2x Pitch Capped Shaft | 228-2500-2219 |
| (4) | 2x Pitch Motor Shaft | 228-2500-2234 |
| (6) | 2x Pitch Plastic Motor Shaft | 228-2500-078 |
| (15) | 2x Pitch Standoff | 228-2500-067 |
| (3) | 2x Wide, 1x1 Offset Corner Connector | 228-2500-133 |
| (11) | 2x Wide, 1x2 Corner Connector | 228-2500-128 |
| (8) | 2x Wide, 1x2 Offset Corner Connector | 228-2500-135 |
| (5) | 2x Wide, 2x1 Corner Connector | 228-2500-132 |
| (4) | 2x Wide, 2x1 Offset Corner Connector | 228-2500-131 |
| (10) | 2x Wide, 2x2 Corner Connector | 228-2500-134 |
| (4) | 2x Wide, 2x2 Offset Corner Connector | 228-2500-136 |
| (4) | 2x Wide, 2x3 Corner Connector | 228-2500-137 |
| (2) | 2x Wide, 48.5mm Diameter Hub | 228-2500-1953 |
| (5) | 2x Wide, 5x Pitch Diameter Balloon Tire (Racing Slick Tread) | 228-2500-1958 |
| (4) | 2x Wide, 60 Degree Omni 1x2 Corner Connector | 228-2500-368 |
| (4) | 2x10 Beam | 228-2500-025 |
| (6) | 2x12 Beam | 228-2500-026 |
| (4) | 2x16 Beam | 228-2500-028 |
| (2) | 2x18 Beam | 228-2500-029 |
| (5) | 2x2 Beam | 228-2500-017 |
| (6) | 2x2 Center Offset Round Lock Beam | 228-2500-1925 |
| (21) | 2x2 Connector Pin | 228-2500-062 |
| (2) | 2x20 Beam | 228-2500-030 |
| (5) | 2x3 Right Angle Beam | 228-2500-145 |
| (6) | 2x4 Beam | 228-2500-019 |
| (6) | 2x6 Beam | 228-2500-021 |
| (2) | 2x7 Beam | 228-2500-022 |
| (6) | 2x8 Beam | 228-2500-023 |
| (1) | 2x8 Smooth Panel | 228-2500-524 |
| (3) | 300 mm Smart Cable | 228-2780-002 |
| (6) | 36 Tooth Gear | 228-2500-214 |
| (6) | 3x Pitch Capped Plastic Shaft | 228-2500-081 |
| (3) | 3x Pitch Capped Shaft | 228-2500-2221 |
| (4) | 3x Pitch Motor Shaft | 228-2500-2236 |
| (6) | 3x Pitch Plastic Motor Shaft | 228-2500-094 |
| (4) | 3x3 30 Degree Angle Beam | 228-2500-147 |
| (4) | 3x3 45 Degree Angle Beam | 228-2500-148 |
| (4) | 3x3 60 Degree Angle Beam | 228-2500-149 |
| (2) | 3x3 Plate | 228-2500-031 |
| (4) | 3x4 Tee Beam | 228-2500-144 |
| (4) | 3x5 Right Angle Beam | 228-2500-150 |
| (1) | 400 mm Smart Cable | 228-2780-003 |
| (2) | 48 Tooth Gear | 228-2500-228 |
| (3) | 4x Pitch Capped Shaft | 228-2500-2223 |
| (4) | 4x Pitch Motor Shaft | 228-2500-2238 |
| (6) | 4x Pitch Plastic Motor Shaft | 228-2500-079 |
| (2) | 4x Pitch Shaft | 228-2500-120 |
| (5) | 4x Pitch Standoff | 228-2500-070 |
| (4) | 4x4 Offset Right Angle Beam | 228-2500-151 |
| (4) | 4x4 Plate | 228-2500-040 |
| (2) | 4x8 Plate | 228-2500-043 |
| (4) | 5x Pitch Capped Plastic Shaft | 228-2500-083 |
| (2) | 5x Pitch Capped Shaft | 228-2500-2225 |
| (1) | 600 mm Smart Cable | 228-2780-004 |
| (4) | 6x Pitch Shaft | 228-2500-122 |
| (6) | 6x Pitch Standoff | 228-2500-072 |
| (4) | 8 Tooth Sprocket | 228-2500-232 |
| (9) | 90 Degree Standoff Connector | 228-2500-178 |
| (1) | Bumper Switch | 228-2677 |
| (11) | Cable Anchor | 228-2500-188 |
| (101) | Chain Link | 228-2500-230 |
| (5) | Double 2x Wide, 1x2 Corner Connector | 228-2500-271 |
| (2) | Double 2x Wide, 2x2 Corner Connector | 228-2500-220 |
| (4) | Double 2x Wide, 2x2 Double Offset Corner Connector | 228-2500-277 |
| (9) | End Standoff Connector | 228-2500-172 |
| (1) | IQ Controller (2nd Generation) | 228-6470 |
| (1) | IQ Distance Sensor | 228-7106 |
| (1) | IQ Optical Sensor | 228-7082 |
| (1) | IQ Robot Battery (Li-Ion, 2000 mAh) | 228-7045 |
| (1) | IQ Robot Brain (2nd Generation) | 228-6480 |
| (6) | Large Chassis Corner Connector | 228-2500-126 |
| (2) | Medium Intake Flap | 228-2500-241 |
| (13) | Mini Standoff Connector | 228-2500-170 |
| (1) | Pin Tool | 228-4035 |
| (3) | Rubber Band Anchor | 228-2500-157 |
| (32) | Rubber Shaft Collar | 228-2500-143 |
| (3) | Short Intake Flap | 228-2500-240 |
| (1) | Silicone Rubber Band #32 | 228-2500-468 |
| (15) | Small Chassis Corner Connector | 228-2500-127 |
| (2) | Small Wheel Hub (44 mm) | 228-2500-1208 |
| (4) | Smart Motor | 228-2560 |
| (2) | Tire (200 mm Travel) | 228-2500-209 |
| (1) | Touch LED | 228-3010 |
| (5) | Traction Link | 228-2500-239 |
| (8) | Triple 2x Wide, 2x2 Corner Connector | 228-2500-1253 |
| (24) | Washer | 228-2500-112 |
詳細規格
- 平台
- VEX IQ（第二代 / 2nd Generation）
- 建議學階
- 小四至中二 / Grades 4–8
- 用途
- 課堂教學 / Classroom instruction
- 配套課程
- VEX STEM Labs（官方免費教案）
- 編程環境
- VEXcode IQ：Blocks、Python
- 型號
- 228-8899
常見問題
一套可以幾個學生一起用？
課堂上常見的做法是二至四人一組共用一套。實際要買幾套取決於班級人數與課時安排，我們可以按你的班數與每班人數估算，並列出常見的損耗零件建議備量。
老師沒有機器人背景可以教嗎？
可以。VEX STEM Labs 提供完整教案與示範，而 CAMEL STEAM 也提供師資培訓與共同備課，先讓老師自己走一遍流程再上課。
學校採購流程是怎樣的？
把需要的型號與數量加進購物車後送出詢價，我們會回覆正式報價單（含型號、數量、單價與交期）。
