VEX IQ

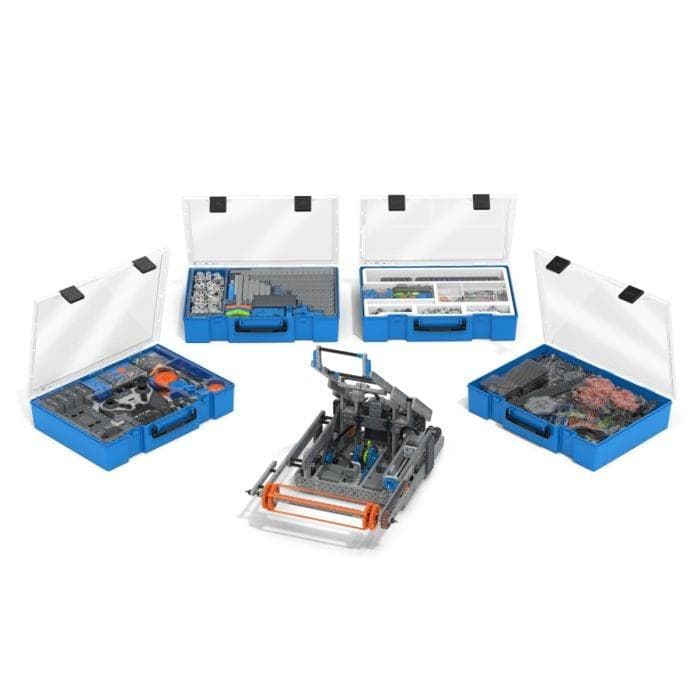

VEX IQ 競賽套裝（第二代）
HK$6,050
型號: 228-7980
VEX IQ 競賽套裝（第二代）
HK$6,050
商品介紹
VEX IQ 競賽套裝是為了參加 VEX IQ Robotics Competition（VIQRC）而配置的第二代套裝，也是學校成立機器人隊最常見的起點。塑膠結構件用插扣方式組裝，不需要螺絲與工具，一班學生可以在課堂時間內反覆拆裝而不損壞零件。
編程用 VEXcode IQ，同一個專案可以在圖形化積木與 Python 之間切換，學生從拖拉指令開始，到需要寫迴圈與函式時不用換軟體、不用重新學介面。第二代主控器的智慧接口會自動辨識接上的馬達與感測器，接錯線不會燒壞元件，這對沒有技術人員支援的學校很重要。
VIQRC 每年更換比賽題目，但器材沿用，因此同一套套裝可以連續使用數個賽季。搭配 VIQRC 場地套件即可在校內做完整練習與校內選拔。
由 STEAM.HK 於香港供應，提供學校報價單、交期確認與零件補充；課程規劃、師資培訓與比賽支援由姊妹品牌 CAMEL STEAM 負責。硬件查詢請致電 +852 2612 5666，課程查詢請致電 +852 2612 5555。
套件內容
| 數量 | 零件 | SKU |
|---|---|---|
| (8) | .5x Pitch Idler Pulley | 228-2500-1413 |
| (28) | 0.25x Pitch Spacer | 228-2500-114 |
| (11) | 0.25x Pitch Standoff | 228-2500-063 |
| (13) | 0.5x Pitch Standoff | 228-2500-064 |
| (11) | 0.5x Pitch Standoff Extender | 228-2500-109 |
| (50) | 0x1 Sheet Pin | 228-2500-099 |
| (22) | 0x2 Connector Pin | 228-2500-086 |
| (7) | 0x2 Idler Pin | 228-2500-084 |
| (21) | 0x3 Connector Pin | 228-2500-087 |
| (16) | 12 Tooth Gear | 228-2500-213 |
| (8) | 12 Tooth Hybrid Gear | 228-2500-250 |
| (2) | 12x Pitch Rope | 228-2500-430 |
| (2) | 12x Pitch Shaft | 228-2500-263 |
| (2) | 16 Tooth Ratchet | 228-2500-1407 |
| (6) | 16 Tooth Sprocket | 228-2500-233 |
| (4) | 1x Pitch Linear Motion Bracket (Snap) | 228-2500-1470 |
| (5) | 1x Pitch Plastic Motor Snap Shaft | 228-2500-328 |
| (13) | 1x Pitch Standoff | 228-2500-065 |
| (4) | 1x Wide Spool | 228-2500-420 |
| (9) | 1x Wide, 1x1 Corner Connector | 228-2500-129 |
| (13) | 1x Wide, 1x1 Offset Corner Connector | 228-2500-130 |
| (4) | 1x Wide, 1x2 Corner Connector | 228-2500-279 |
| (10) | 1x1 Beam | 228-2500-154 |
| (221) | 1x1 Connector Pin | 228-2500-060 |
| (7) | 1x1 Idler Pin | 228-2500-073 |
| (2) | 1x1 Left Corner Beam | 228-2500-391 |
| (2) | 1x1 Right Corner Beam | 228-2500-392 |
| (6) | 1x10 Beam | 228-2500-009 |
| (2) | 1x11 Beam | 228-2500-010 |
| (4) | 1x12 Beam | 228-2500-011 |
| (2) | 1x13 Beam | 228-2500-012 |
| (2) | 1x14 Beam | 228-2500-013 |
| (4) | 1x16 Beam | 228-2500-014 |
| (2) | 1x18 Beam | 228-2500-015 |
| (5) | 1x2 Beam | 228-2500-001 |
| (53) | 1x2 Connector Pin | 228-2500-061 |
| (2) | 1x2 Left Chassis Corner Connector | 228-2500-1254 |
| (2) | 1x2 Right Chassis Corner Connector | 228-2500-1255 |
| (2) | 1x20 Beam | 228-2500-016 |
| (2) | 1x3 Ball Socket Linkage | 228-2500-1664 |
| (6) | 1x3 Beam | 228-2500-002 |
| (4) | 1x3 Center Lock Beam | 228-2500-1141 |
| (2) | 1x4 Ball Socket Linkage | 228-2500-1665 |
| (7) | 1x4 Beam | 228-2500-003 |
| (2) | 1x4 Crank Arm with 23 Tooth Gear | 228-2500-246 |
| (5) | 1x4 Low Profile End Lock Beam | 228-2500-1548 |
| (8) | 1x5 Beam | 228-2500-004 |
| (8) | 1x6 (3-4-5 Triangle) Diagonal Offset Truss Beam | 228-2500-1110 |
| (6) | 1x6 Beam | 228-2500-005 |
| (8) | 1x6 Continuous Linear Motion Rack Gear | 228-2500-1473 |
| (6) | 1x6 Linear Motion Beam | 228-2500-1457 |
| (8) | 1x8 Beam | 228-2500-007 |
| (6) | 1x8 Linear Motion Beam | 228-2500-1459 |
| (4) | 1x9 Beam | 228-2500-008 |

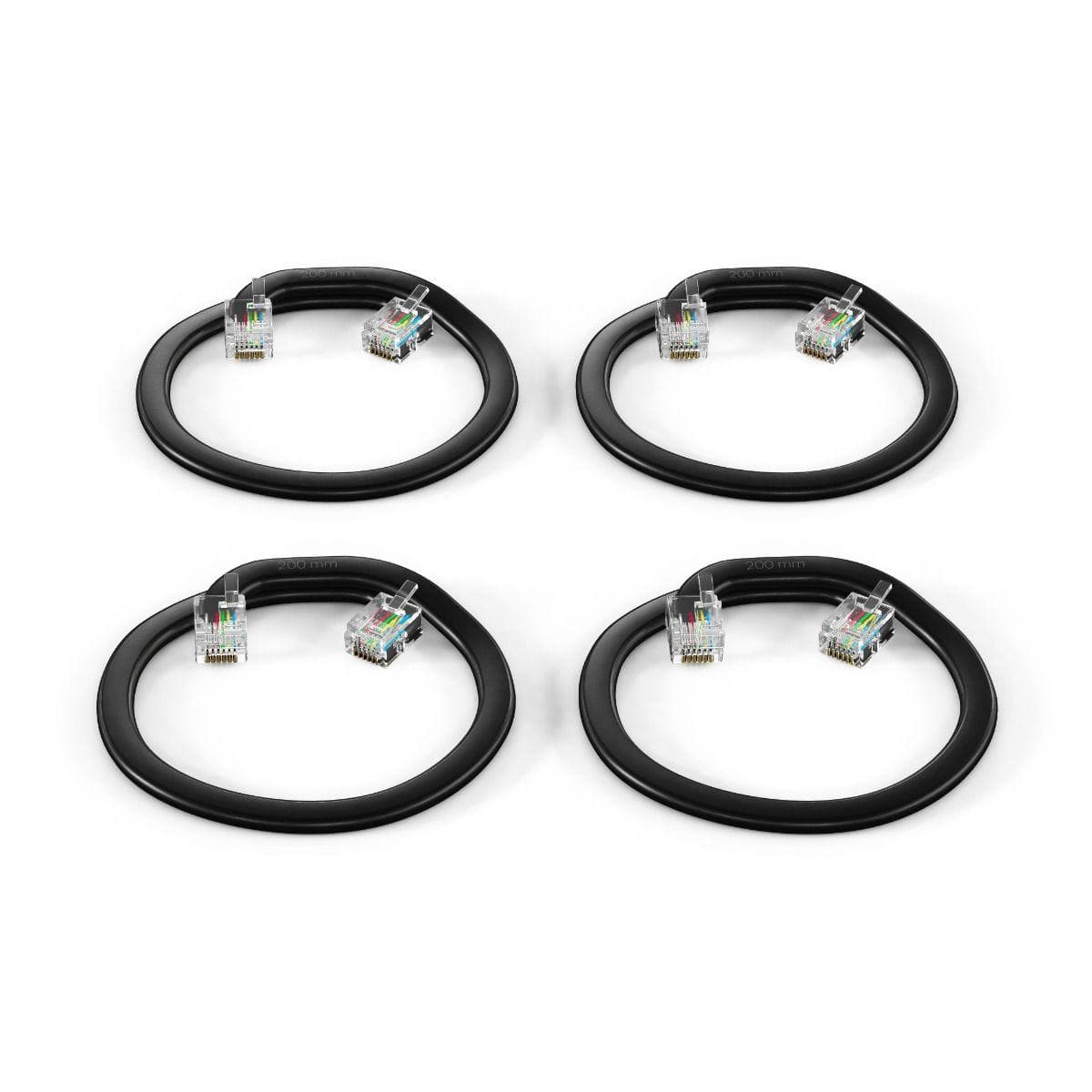

| (4) | 200 mm Smart Cable | 228-2780-001 |

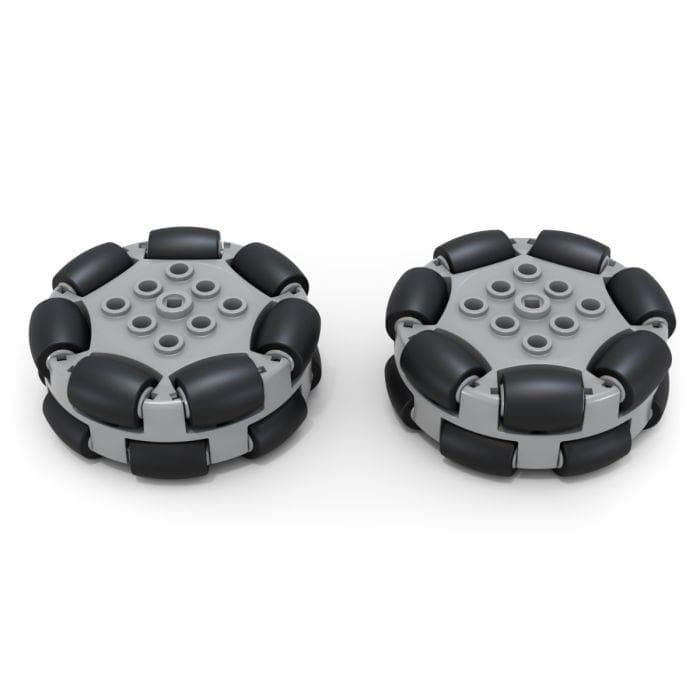

| (4) | 200mm Travel Omni-Directional Wheel | 228-2500-2536 |
| (8) | 24 Tooth Gear | 228-2500-227 |
| (6) | 24 Tooth Hybrid Gear | 228-2500-251 |
| (6) | 24 Tooth Sprocket | 228-2500-235 |
| (2) | 24x Pitch Rope | 228-2500-438 |
| (1) | 2m USB Cable (A-Micro) | 228-6901-001 |
| (3) | 2x Pitch Capped Shaft | 228-2500-2219 |
| (6) | 2x Pitch Linear Motion Bracket (Side Mount) | 228-2500-1469 |
| (10) | 2x Pitch Motor Shaft | 228-2500-2234 |
| (6) | 2x Pitch Plastic Motor Shaft | 228-2500-078 |
| (1) | 2x Pitch Shock Absorber (Strong) | 228-2500-1480 |
| (1) | 2x Pitch Shock Absorber (Weak) | 228-2500-1560 |
| (15) | 2x Pitch Standoff | 228-2500-067 |
| (3) | 2x Wide, 1x1 Offset Corner Connector | 228-2500-133 |
| (11) | 2x Wide, 1x2 Corner Connector | 228-2500-128 |
| (8) | 2x Wide, 1x2 Offset Corner Connector | 228-2500-135 |
| (4) | 2x Wide, 1x3 Offset Corner Connector | 228-2500-283 |
| (5) | 2x Wide, 2x1 Corner Connector | 228-2500-132 |
| (4) | 2x Wide, 2x1 Offset Corner Connector | 228-2500-131 |
| (10) | 2x Wide, 2x2 Corner Connector | 228-2500-134 |
| (4) | 2x Wide, 2x2 Offset Corner Connector | 228-2500-136 |
| (4) | 2x Wide, 2x3 Corner Connector | 228-2500-137 |
| (4) | 2x Wide, 3.5x Pitch Diameter Balloon Tire (Trapezoid Offroad Tread) | 228-2500-1957 |
| (4) | 2x Wide, 30 Degree Left 1x2 Corner Connector | 228-2500-372 |
| (4) | 2x Wide, 30 Degree Right 1x2 Corner Connector | 228-2500-371 |
| (4) | 2x Wide, 32.2mm Diameter Hub | 228-2500-1950 |
| (4) | 2x Wide, 3x3 60 Degree Angle Beam | 228-2500-1268 |
| (2) | 2x Wide, 48.5mm Diameter Hub | 228-2500-1953 |
| (2) | 2x Wide, 5x Pitch Diameter Balloon Tire (Racing Slick Tread) | 228-2500-1958 |
| (4) | 2x Wide, 60 Degree Omni 1x2 Corner Connector | 228-2500-368 |
| (2) | 2x1 Extended Left Corner Beam | 228-2500-408 |
| (2) | 2x1 Extended Right Corner Beam | 228-2500-409 |
| (4) | 2x1 Left Corner Beam | 228-2500-400 |
| (4) | 2x1 Right Corner Beam | 228-2500-401 |
| (4) | 2x10 Beam | 228-2500-025 |
| (4) | 2x11 Beam | 228-2500-206 |
| (10) | 2x12 Beam | 228-2500-026 |
| (2) | 2x12 Plastic PET Sheet | 228-2500-2710 |
| (2) | 2x14 Beam | 228-2500-027 |
| (4) | 2x16 Beam | 228-2500-028 |
| (2) | 2x18 Beam | 228-2500-029 |
| (4) | 2x2 30 Degree Beam | 228-2500-1485 |
| (4) | 2x2 45 Degree Beam | 228-2500-1486 |
| (5) | 2x2 Beam | 228-2500-017 |
| (10) | 2x2 Center Offset Round Lock Beam | 228-2500-1925 |
| (21) | 2x2 Connector Pin | 228-2500-062 |
| (2) | 2x2 Extended Left Corner Beam | 228-2500-412 |
| (2) | 2x2 Extended Right Corner Beam | 228-2500-413 |
| (2) | 2x2 Left Corner Beam | 228-2500-406 |
| (2) | 2x2 Right Corner Beam | 228-2500-407 |
| (8) | 2x20 Beam | 228-2500-030 |
| (4) | 2x3 Beam | 228-2500-018 |
| (6) | 2x3 Delta Tee Beam | 228-2500-1189 |
| (5) | 2x3 Right Angle Beam | 228-2500-145 |
| (3) | 2x30 mm Square Silicone Belt | 228-2500-1225 |
| (6) | 2x4 Beam | 228-2500-019 |
| (4) | 2x4 Wedge Beam | 228-2500-1240 |
| (6) | 2x4x2 Double 60 Degree Beam | 228-2500-1199 |
| (4) | 2x5 Beam | 228-2500-020 |
| (6) | 2x6 Beam | 228-2500-021 |
| (4) | 2x6x2 30 Degree Jogged Beam | 228-2500-1556 |
| (6) | 2x7 Beam | 228-2500-022 |
| (6) | 2x8 Beam | 228-2500-023 |
| (1) | 2x8 Smooth Panel | 228-2500-524 |
| (2) | 2x9 Beam | 228-2500-024 |
| (3) | 300 mm Smart Cable | 228-2780-002 |
| (6) | 36 Tooth Gear | 228-2500-214 |
| (6) | 36 Tooth Hybrid Gear | 228-2500-252 |
| (6) | 3x Pitch Capped Plastic Shaft | 228-2500-081 |
| (3) | 3x Pitch Capped Shaft | 228-2500-2221 |
| (10) | 3x Pitch Motor Shaft | 228-2500-2236 |
| (6) | 3x Pitch Plastic Motor Shaft | 228-2500-094 |
| (2) | 3x10 Plate | 228-2500-036 |
| (4) | 3x12 Girder Plate; 2x8 2x Offset Trapezoid | 228-2500-1600 |
| (4) | 3x16 Plate | 228-2500-038 |
| (4) | 3x3 30 Degree Angle Beam | 228-2500-147 |
| (4) | 3x3 45 Degree Angle Beam | 228-2500-148 |
| (4) | 3x3 60 Degree Angle Beam | 228-2500-149 |
| (2) | 3x3 Plate | 228-2500-031 |
| (4) | 3x3 Right Angle Beam | 228-2500-146 |
| (2) | 3x3 Wye Lock Beam | 228-2500-1159 |
| (4) | 3x4 1x Offset Trapezoid Plate | 228-2500-1357 |
| (4) | 3x4 Plate | 228-2500-032 |
| (4) | 3x4 Tee Beam | 228-2500-144 |
| (4) | 3x5 Right Angle Beam | 228-2500-150 |
| (4) | 3x5 Wedge Plate | 228-2500-1245 |
| (4) | 3x6 Plate | 228-2500-034 |
| (2) | 400 mm Smart Cable | 228-2780-003 |
| (10) | 45 Degree Standoff Connector | 228-2500-175 |
| (4) | 48 Tooth Gear | 228-2500-228 |
| (1) | 48x Pitch Rope | 228-2500-442 |
| (3) | 4x Pitch Capped Shaft | 228-2500-2223 |
| (10) | 4x Pitch Motor Shaft | 228-2500-2238 |
| (6) | 4x Pitch Plastic Motor Shaft | 228-2500-079 |
| (2) | 4x Pitch Shaft | 228-2500-120 |
| (5) | 4x Pitch Standoff | 228-2500-070 |
| (4) | 4x4 Offset Right Angle Beam | 228-2500-151 |
| (4) | 4x4 Plate | 228-2500-040 |
| (2) | 4x8 Plate | 228-2500-043 |
| (4) | 5x Pitch Capped Plastic Shaft | 228-2500-083 |
| (2) | 5x Pitch Capped Shaft | 228-2500-2225 |
| (2) | 60 Tooth Gear | 228-2500-215 |
| (2) | 600 mm Smart Cable | 228-2780-004 |
| (4) | 6x Pitch Shaft | 228-2500-122 |
| (6) | 6x Pitch Standoff | 228-2500-072 |
| (2) | 6x12 Plastic PET Sheet | 228-2500-2712 |
| (2) | 6x2x2 Tee Beam | 228-2500-478 |
| (2) | 6x6 PET Sheet | 276-7735-711 |
| (2) | 7x9x11 (6-8-10 Triangle) Truss Plate | 228-2500-1117 |
| (8) | 8 Tooth Sprocket | 228-2500-232 |
| (8) | 8x Pitch Standoff | 228-2500-1061 |
| (9) | 90 Degree Standoff Connector | 228-2500-178 |
| (16) | Ball Pin Bushing | 228-2500-1660 |
| (1) | Bumper Switch | 228-2677 |
| (11) | Cable Anchor | 228-2500-188 |
| (4) | Cam Follower | 228-2500-1303 |
| (161) | Chain Link | 228-2500-230 |
| (8) | Double 1x Wide, 1x1 Corner Connector | 228-2500-270 |
| (8) | Double 1x Wide, 2x1 Corner Connector | 228-2500-272 |
| (5) | Double 2x Wide, 1x2 Corner Connector | 228-2500-271 |
| (6) | Double 2x Wide, 1x2 Offset Corner Connector | 228-2500-274 |
| (2) | Double 2x Wide, 2x2 Corner Connector | 228-2500-220 |
| (4) | Double 2x Wide, 2x2 Double Offset Corner Connector | 228-2500-277 |
| (9) | End Standoff Connector | 228-2500-172 |
| (1) | IQ Controller (2nd Generation) | 228-6470 |
| (1) | IQ Distance Sensor | 228-7106 |
| (1) | IQ Optical Sensor | 228-7082 |
| (1) | IQ Robot Battery (Li-Ion, 2000 mAh) | 228-7045 |
| (1) | IQ Robot Brain (2nd Generation) | 228-6480 |
| (2) | Large 1x Pitch Drop Cam | 228-2500-1306 |
| (6) | Large Chassis Corner Connector | 228-2500-126 |
| (1) | Large Rubber Intake Belt | 228-2500-1961 |
| (8) | Long Intake Flap | 228-2500-242 |
| (10) | Medium Intake Flap | 228-2500-241 |
| (13) | Mini Standoff Connector | 228-2500-170 |
| (1) | Pin Tool | 228-4035 |
| (4) | Quad 2x Wide, 2x2 Corner Connector | 228-2500-1258 |
| (3) | Rubber Band Anchor | 228-2500-157 |
| (32) | Rubber Shaft Collar | 228-2500-143 |
| (11) | Short Intake Flap | 228-2500-240 |
| (3) | Short Low-Profile Pawl | 228-2500-1411 |
| (2) | Silicone Rubber Band #117B | 228-2500-470 |
| (2) | Silicone Rubber Band #32 | 228-2500-468 |
| (2) | Small 2x Pitch Drop Cam | 228-2500-1305 |
| (15) | Small Chassis Corner Connector | 228-2500-127 |
| (2) | Small Rubber Intake Belt | 228-2500-1960 |
| (2) | Small Wheel Hub (44 mm) | 228-2500-1208 |
| (6) | Smart Motor | 228-2560 |
| (12) | Straight Standoff Connector | 228-2500-171 |
| (160) | Tank Tread, Attachment Link | 228-2500-231 |
| (2) | Tire (200 mm Travel) | 228-2500-209 |
| (1) | Touch LED | 228-3010 |
| (8) | Traction Link | 228-2500-239 |
| (8) | Triple 1x Wide, 1x1 Corner Connector | 228-2500-1250 |
| (8) | Triple 2x Wide, 2x2 Corner Connector | 228-2500-1253 |
| (10) | Truss Standoff Connector | 228-2500-1109 |
| (24) | Washer | 228-2500-112 |
| (2) | Worm Gear | 228-2500-219 |
詳細規格
- 平台
- VEX IQ（第二代 / 2nd Generation）
- 建議學階
- 小四至中三 / Grades 4–8
- 結構方式
- 塑膠插扣件，免工具組裝 / Snap-together plastic, no tools
- 編程環境
- VEXcode IQ：Blocks、Python
- 對應賽事
- VEX IQ Robotics Competition（VIQRC）
- 型號
- 228-7980
常見問題
這套和「教育套裝」（IQ Education Kit）差在哪裡？
競賽套裝的零件配置是以組出比賽機器人為目標，通常用於已經確定要參賽的隊伍；教育套裝偏向課堂教學使用，配合課程活動。如果目標是校內課程先行、日後再參賽，可以先問我們比較兩者的零件差異再決定。
需要電腦嗎？可以用平板嗎？
VEXcode IQ 有電腦與平板版本，Windows、macOS、Chromebook、iPad 與 Android 都可以用。學校如果只有平板，仍然可以完成圖形化編程的課程。
要參加比賽還需要買什麼？
除了機器人套裝，練習與校內選拔通常還需要當季的場地套件與遊戲元件。每個賽季的題目不同，我們可以按你要參加的組別列出當季需要的清單。
學校採購流程是怎樣的？
把需要的型號與數量加進購物車後送出詢價，我們會回覆正式報價單（含型號、數量、單價與交期）。
