IOBit Expansion Board

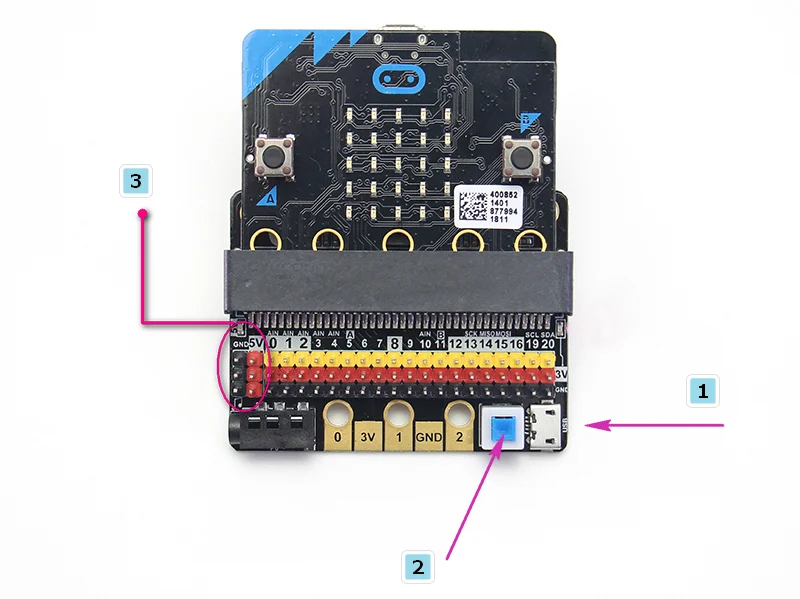

IOBit is a basic expansion board designed for Micro:bit, as the name suggests, IOBit makes the all IO pins of the Micro:bit accessible. Product Details IOBit is a low cost expansion board for Micro:bit, it extends all the IO pins of the Micro:bit into Dupont connectors for easy access. IOBit is equipped with a buzzer and a 3.5mm audio jack for making sounds with Micro:bit. It also has a power port to supply 3V or 5V power to your hardware. The edge connectors of the Micro:bit is preserved for users familiar with using crcodile clips. Special Features Converts the edge connectors pins of the Micro:bit to the standard 3 pin format. The singal, vcc and gnd pins can be distinguished by their colors. Equipped with short circuit protection and a resettable fuse, avoiding dangers such as short circuiting because of incorrect connection. Preserves the 3 pin edge connector of the Micro:bit, allowing users who are used to this system to use the board. 2 pin holes compatible with standard Lego Technic pins allow easy integration of the expansion board to your robotic projects. Specifications Dimensions: 56.8x44x12 mm Power Input: USB 5V/Micro:bit Battery Box 3V Power Output: 3.3V~5V, maximum 1A
